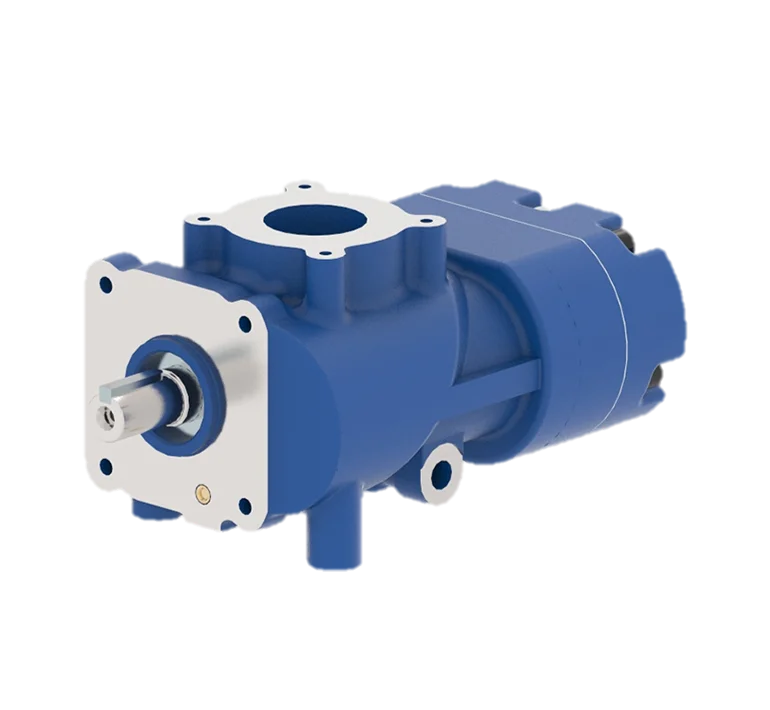

SCA 7

Screw Air-ends

The SCA series (Screw Compressor Air Ends) represents the oil-injected bare-shaft Air-ends series designed for both industrial and portable applications.

The SCA series (Screw Compressor Air Ends) represents the oil-injected bare-shaft Air-ends series designed for both industrial and portable applications. Comprising 9 sizes, the SCA series offers high-efficiency solutions ranging from 0.35 to 90 m³/min (12 to 3200 cfm) with a maximum discharge pressure of 15 barg (220 psig).

Each unit can be equipped with an integrated gearbox available in various gear ratios. The SCA series is renowned for its reliability, exceptional performance, and low noise levels. The highest quality standards have been achieved through the advanced technological capabilities of the TM.I.C. workshop and the superior quality of the materials selected, particularly the dual lip seals, bearing casings, and rotors.

Special configurations capable of reaching 20 barg (290 psig) are available upon request.

Read more

Product
parameters


Measure
min
max
Power range
kW*
2,2
7,5
Power range
HP
2,9
10
Flow range
m3/min*
0,3
1
Flow range
cfm
10
35
Max allowable working pressure
barg/psig
15/220
15/220

* referred to 10 barg

Technical
features

•    Oil Injected Screw Compressors;
•    Single Stage;
•    Bare-shaft;
•    9 Sizes;
•    Integrated Gear-box available;
•    High Volumetric efficiency;
•    Low Noise Level;
•    PTFE Double Lip Seal;
•    Standard Discharge Pressure Range from 3 to 15 barg
     (43.5 to 220 psig);
•    Higher Pressure upon Request
