SCI 7

Screw Air-ends

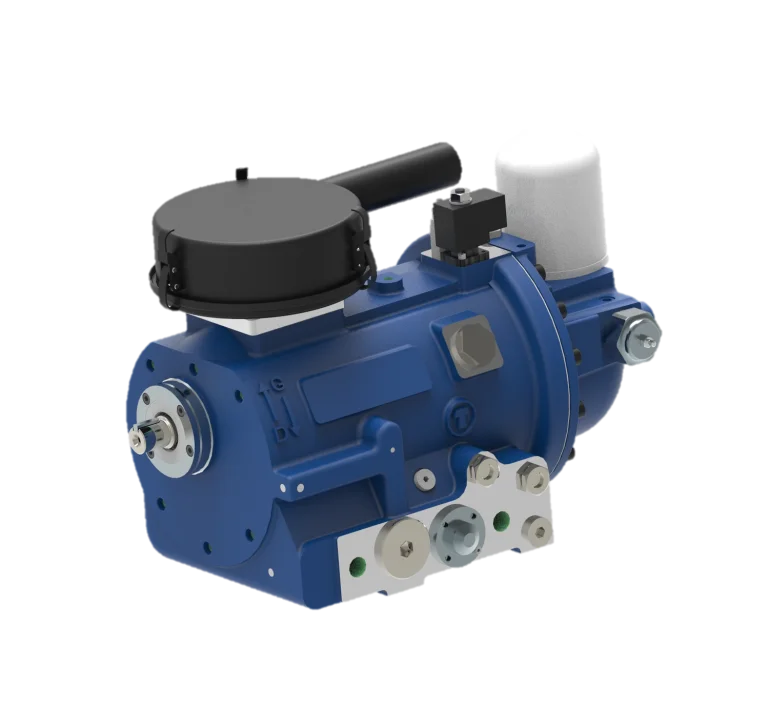

The SCI Series (Screw Compressor Integrated) represents TM.I.C.'s solution for compact applications.

The SCI Series (Screw Compressor Integrated) represents TM.I.C.'s solution for compact applications. It includes three sizes, each equipped with an integrated oil tank, valve block, filters, and suction valve, with capacities ranging from 0.4 to 5.5 m³/min (14 to 190 cfm).

TM.I.C. has developed unique solutions for extraordinary applications:
•    SCI10 ALG: A patented solution distinguished by an aluminum oil tank, offering significant weight savings.
•    SCI8 HP: Designed to achieve a discharge pressure of 20 barg (290 psig).

Read more

Product
parameters


Measure
min
max
Power range
kW
4
7,5
Power range
HP
5,4
10
Flow range
m3/min
0,4
0,8
Flow range
cfm
14
28
Max allowable working pressure
barg/psig
13/190
13/190

* referred to 10 barg

Technical
features

  • High volumetric efficiency;
  • Low running cost;
  • Low maintenance costs;
  • Low Noise Level;
  • PTFE double lip seal;
  • Max Discharge Pressure: 13 barg (190 psig)
