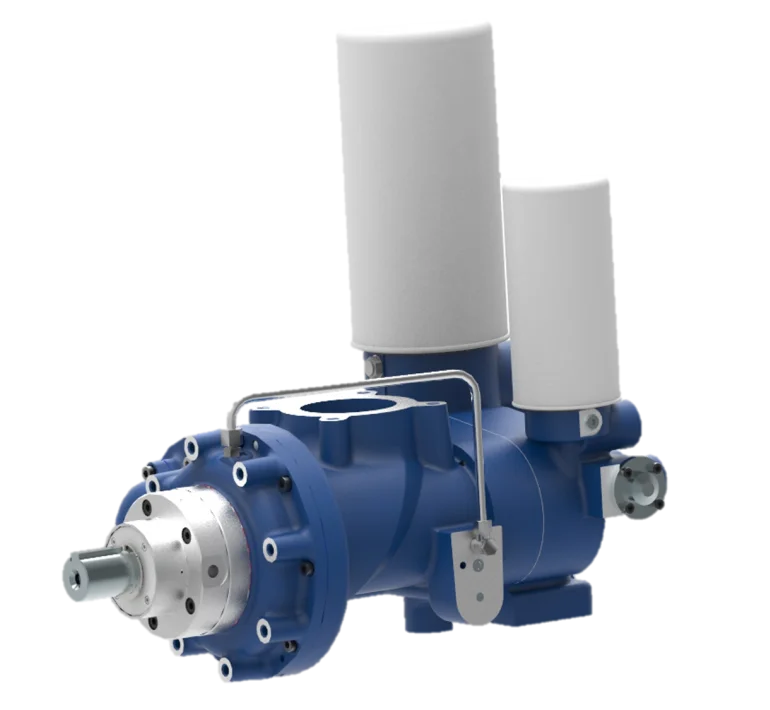

COMPACT 10

Screw Gas-ends

Equipped with an oil filter, oil separator filter, thermostatic valve and MPV, the Compact 10 provides a simpler solution for packaging a gas end.

Equipped with an oil filter, oil separator filter, thermostatic valve and MPV, the Compact 10 provides a simpler solution for packaging a gas end. The unit can achieve a maximum flow rate of 5.5 m³/min (195 cfm) and a maximum discharge pressure of 15 barg (220 psig).

Read more

Product
parameters


Measure
min
max
Power range
kW
22
55
Power range
HP
30
75
Flow range
m3/min
2,5
5,5
Flow range
cfm
90
195
Max allowable working pressure
barg/psig
15/220
15/220

* referred to 10 bar

Technical
features

  • Oil Injected Screw Compressors;
  • Bare shaft;
  • Single Stage;
  • Integrated gear-box;
  • Mechanical Seal;
  • Thermostatic valve;
  • Oil Separator;
  • Oil Filter;
  • Integrated gear-box;
  • Mechanical Seal;
  • Minimum pressure valve
