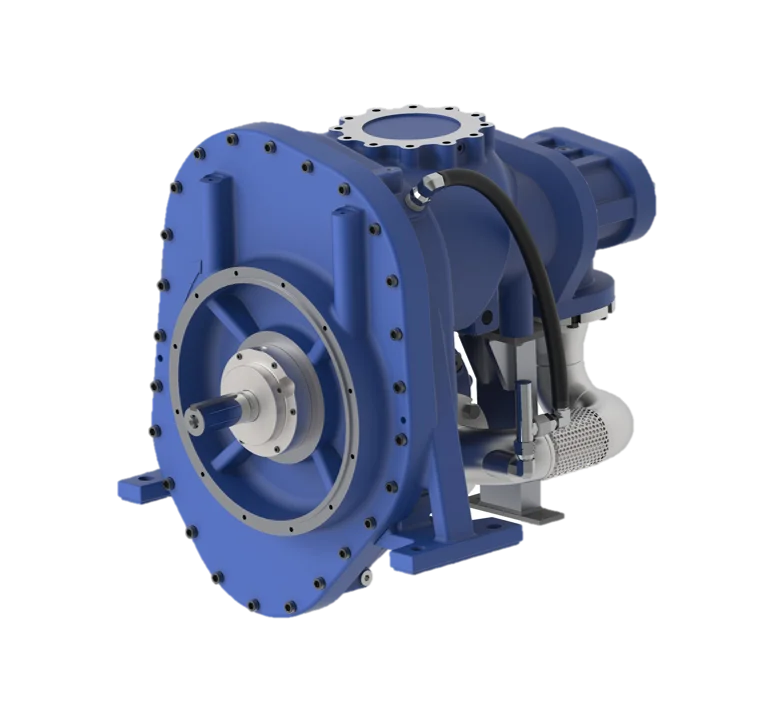

ITA-TS 23

Screw Gas-ends

Designed to reach 25 barg (360 psig) with exceptional performance, the ITA-TS 23 is the first two-stage unit developed by TM.I.C., available for both air and gas applications.

Designed to reach 25 barg (360 psig) with exceptional performance, the ITA-TS 23 is the first two-stage unit developed by TM.I.C., available for both air and gas applications. The two-stage solution enhances efficiency, becoming significant at a discharge pressure of 15 barg, remarkable at 20 barg, and essential at higher pressures.

The ITA-TS 23 covers a flow range of 14.5 to 27 m³/min (500 to 950 cfm), reaching a maximum power of 270 kW (360 hp).

Read more

Product
parameters


Measure
min
max
Power range
kW
110
270
Power range
HP
147
360
Flow range
m3/min
14,5
27
Flow range
cfm
500
950
Max allowable working pressure
barg/psig
25/360
25/360

* referred to 10 bar

Technical
features

  • Oil Injected Screw Compressors;
  • Bare shaft;
  • Two Stage;
  • Integrated gear-box;
  • Mechanical Seal
