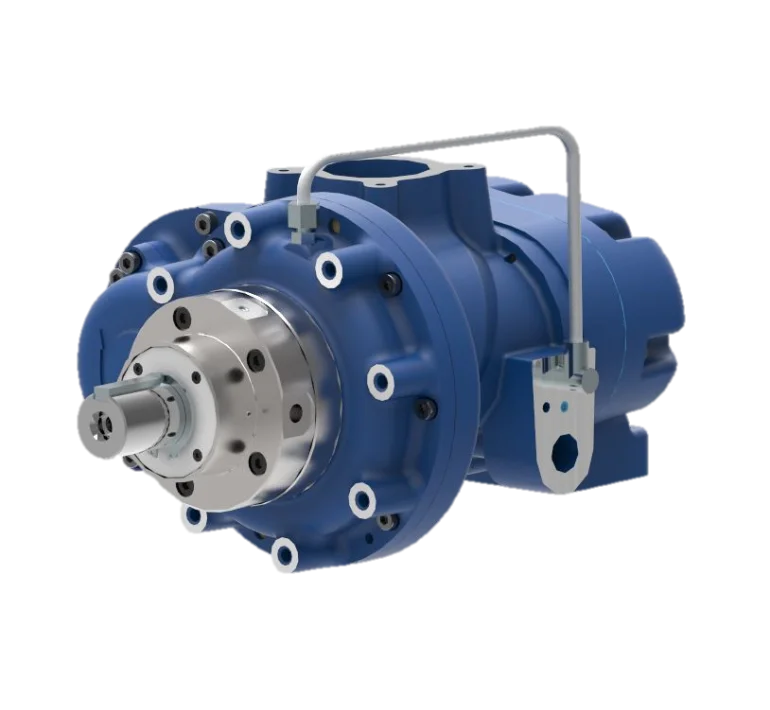

NG 9

Screw Gas-ends

TM.I.C. specializes in the production of Oil-Injected Screw Gas Ends, tailored for every type of gas application.

TM.I.C. specializes in the production of Oil-Injected Screw Gas Ends, tailored for every type of gas application. Our NG series, comprising nine sizes, is capable of achieving a suction pressure of 1 barg (14.5 psig) and a discharge pressure of 20 barg (290 psig), with a maximum achievable flow of 90 m³/min (3200 cfm).

Each unit is equipped with a gear ratio, mechanical seal, and top-quality bearings, making them suitable for various gas compositions. The quality and reliability of our products are ensured by the extensive experience we have gained in the field.

Read more

Product
parameters


Measure
min
max
Power range
kW
15
30
Power range
HP
20
40
Flow range
m3/min
0,5
3
Flow range
cfm
50
105
Max allowable working pressure
barg/psig
16/230
16/230

* referred to 10 bar

Technical
features

  • Oil Injected Screw Compressors;
  • Bare shaft;
  • Single Stage;
  • 8 sizes;
  • Integrated gear-box;
  • Mechanical Seal
