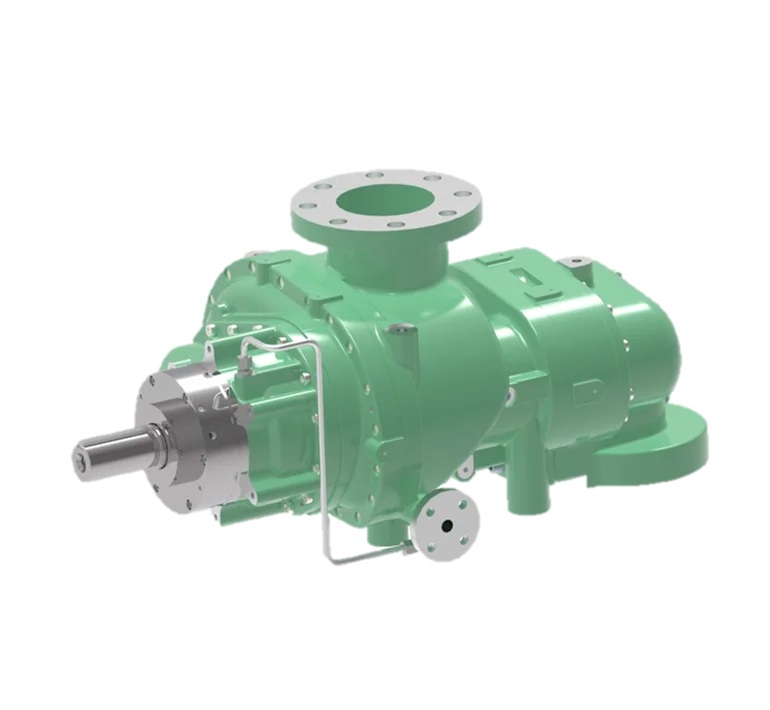

NG 21 - Marine
Marine Applications
TM.I.C. specializes in the production of Oil-Injected Screw Gas Ends, tailored for every type of gas application. Our NG series, comprising nine sizes, is capable of achieving a suction pressure of 1 barg (14.5 psig) and a discharge pressure of 20 barg (290 psig), with a maximum achievable flow of 90 m³/min (3200 cfm).
Each unit is equipped with a gear ratio, mechanical seal, and top-quality bearings, making them suitable for various gas compositions. The quality and reliability of our products are ensured by the extensive experience we have gained in the field.
Product
parameters
Measure
min
max
Power range
kW
75
200
Power range
HP
90
250
Flow range
m3/min*
7
20
Flow range
cfm
250
700
Max allowable working pressure
barg/psig
20/290
20/290
* referred to 10 barg
Technical
features
- Oil Injected Screw Compressors;
- Bare shaft;
- Single Stage;
- 8 sizes;
- Integrated gear-box;
- Mechanical Seal
