Our gas-ends and air-ends suitable for your most common offshore and on shore marine application. Our screw compressors are certified by the main classification bodies.
NG+SCG Series
Power range (kW)
Power range (HP)
Flow range (m3/min)
Flow range (cfm)
Max allowable working pressure (bar)
Max allowable working pressure (psig)
* All the measurement are referred to 10 barg

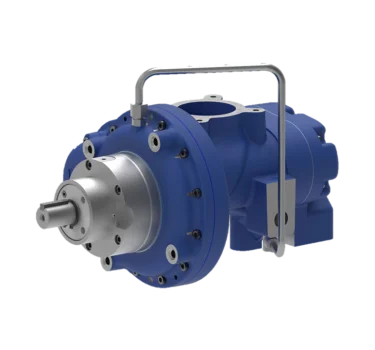

NG 8
min
max
Power range (kW)
7.5
22
Power range (HP)
10
30
Flow range (m3/min)
0.7
2
Flow range (cfm)
25
70
Max allowable working pressure (bar)
17
17
Max allowable working pressure (psig)
Show
245
245

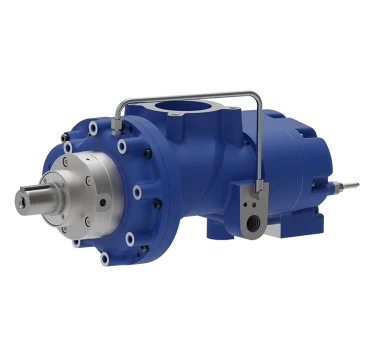

SCG 10
min
max
Power range (kW)
22
55
Power range (HP)
30
75
Flow range (m3/min)
2.5
7
Flow range (cfm)
85
250
Max allowable working pressure (bar)
24
24
Max allowable working pressure (psig)
Show
350
350
NG 13 - Marine
min
max
Power range (kW)
30
75
Power range (HP)
40
100
Flow range (m3/min)
3
8
Flow range (cfm)
105
280
Max allowable working pressure (bar)
20
20
Max allowable working pressure (psig)
Show
290
290
NG 14 - Marine
min
max
Power range (kW)
37
110
Power range (HP)
50
150
Flow range (m3/min)
4
13
Flow range (cfm)
140
460
Max allowable working pressure (bar)
20
20
Max allowable working pressure (psig)
Show
290
290
NG 21 - Marine
min
max
Power range (kW)
75
200
Power range (HP)
90
250
Flow range (m3/min)
7
20
Flow range (cfm)
250
700
Max allowable working pressure (bar)
20
20
Max allowable working pressure (psig)
Show
290
290
NG 22 - Marine
min
max
Power range (kW)
90
250
Power range (HP)
120
330
Flow range (m3/min)
9
22
Flow range (cfm)
315
775
Max allowable working pressure (bar)
20
20
Max allowable working pressure (psig)
Show
290
290
NG 30
min
max
Power range (kW)
132
400
Power range (HP)
180
550
Flow range (m3/min)
17
50
Flow range (cfm)
600
1760
Max allowable working pressure (bar)
20
20
Max allowable working pressure (psig)
Show
290
290
Power range up to 22 kW (30 hp)
Flow range up to 2 m3/min
Max pressure 17 barg (245 psig)
Power range up to 55 kW (75 hp)
Flow range up to 7 m3/min
Max pressure 24 barg (350 psig)
Power Range up to 75 KW (100 Hp)
Flow Range up to 8 m3/min
Max Pressure 20 barg (290 psig)
Power Range up to 110 KW (150 Hp)
Flow Range up to 13 m3/min
Max Pressure 20 barg (290 psig)
Power Rangeup to 200KW (250 Hp)
Flow Rangeup to 20 m3/min
Max Pressure 20 barg (290 psig)
Power Range up to 250 KW (330 Hp)
Flow Range up to 22 m3/min
Max Pressure 20 barg (290 psig)
Power range up to 400 kW (550 hp)
Flow range up to 50 m3/min
Max pressure 20 barg (290 psig)
