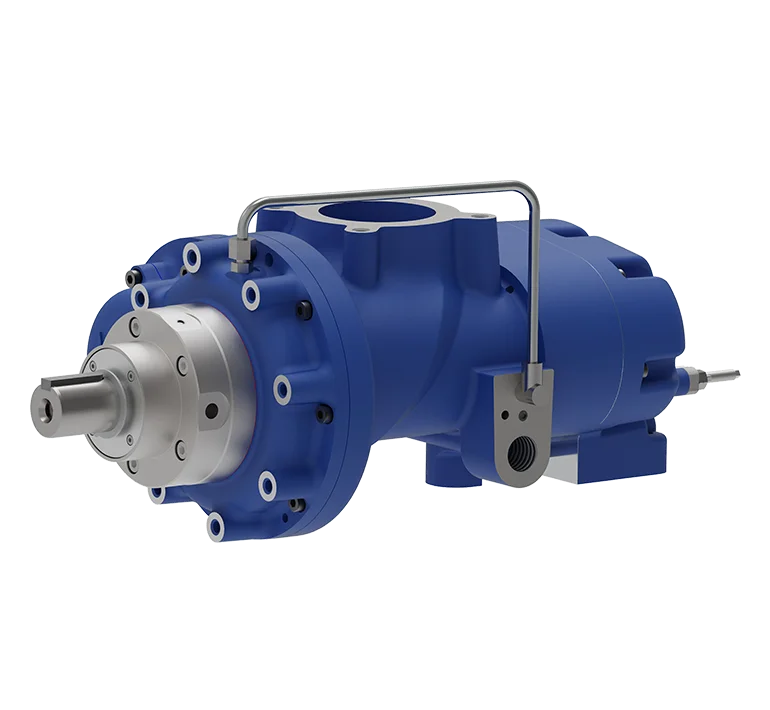

SCG 10
Screw Gas-ends
The SCG Series, developed for low pressure ratio applications, includes the SCG10 and SCG14 units, both designed with a variable Vi system. These units can be adjusted according to the pressure ratio to achieve optimal performance.
The SCG Series, developed for low pressure ratio applications, includes the SCG10 and SCG14 units, both designed with a variable Vi system. These units can be adjusted according to the pressure ratio to achieve optimal performance.
The SCG Series can reach a suction pressure of 3.5 barg (50 psig) and a discharge pressure of 24 barg (350 psig), covering a flow range of 2.5 to 13 m³/min (85 to 460 cfm).
Product
parameters
Measure
min
max
Power range
kW
22
50
Power range
HP
30
75
Flow range
m3/min
2,5
7
Flow range
cfm
85
250
Max allowable working pressure
barg/psig
24/350
24/350
* referred to 10 bar
Technical
features
- Oil Injected Screw Compressors;
- Bare shaft;
- Single Stage;
- 2 sizes;
- Integrated gear-box;
- Mechanical Seal;
- Variable Vi System
