Products

Screw Air-ends Screw Gas-ends Marine Applications

Screw
Gas-ends

Oil & Gas, Biogas, Methane,
Petrochemical, VRU
TM.I.C. is specialized in the production of Oil-Injected Screw Gas Ends tailored for every type of gas applications. Our compressors are capable of achieving a suction pressure of 8 barg (115 psig) and a discharge pressure of 25 barg (360 psig).
Read more
Power range (kW)
Power range (HP)
Flow range (m3/min)
Flow range (cfm)
Max allowable working pressure (bar)
Max allowable working pressure (psig)
* All the measurement are referred to 10 barg
SCG 10
min
max
Power range (kW)
22
55
Power range (HP)
30
75
Flow range (m3/min)
2.5
7
Flow range (cfm)
85
250
Max allowable working pressure (bar)
24
24
Max allowable working pressure (psig)
350
350
Show

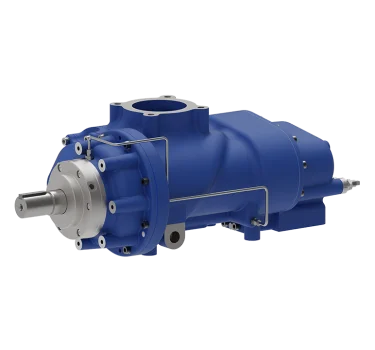

SCG 14
min
max
Power range (kW)
37
110
Power range (HP)
50
150
Flow range (m3/min)
4
13
Flow range (cfm)
140
460
Max allowable working pressure (bar)
24
24
Max allowable working pressure (psig)
350
350
Show

SCG 10

Power range up to 55 kW (75 hp)

Flow range up to 7 m3/min

Max pressure 24 barg (350 psig)

SCG 14

Power range up to 110 kW (150 hp)

Flow range up to 13 m3/min

Max pressure 24 barg (350 psig)
