Products

Screw Air-ends Screw Gas-ends Marine Applications

Screw
Gas-ends

Oil & Gas, Biogas, Methane,
Petrochemical, VRU
TM.I.C. is specialized in the production of Oil-Injected Screw Gas Ends tailored for every type of gas applications. Our compressors are capable of achieving a suction pressure of 8 barg (115 psig) and a discharge pressure of 25 barg (360 psig).
Read more
Power range (kW)
Power range (HP)
Flow range (m3/min)
Flow range (cfm)
Max allowable working pressure (bar)
Max allowable working pressure (psig)
* All the measurement are referred to 10 barg
ITA-HP 13
min
max
Power range (kW)
37
110
Power range (HP)
50
150
Flow range (m3/min)
1.9
8.8
Flow range (cfm)
65
310
Max allowable working pressure (bar)
25
25
Max allowable working pressure (psig)
360
360
Show
ITA-HP 26
min
max
Power range (kW)
90
350
Power range (HP)
120
470
Flow range (m3/min)
8
36
Flow range (cfm)
282
1260
Max allowable working pressure (bar)
25
25
Max allowable working pressure (psig)
360
360
Show

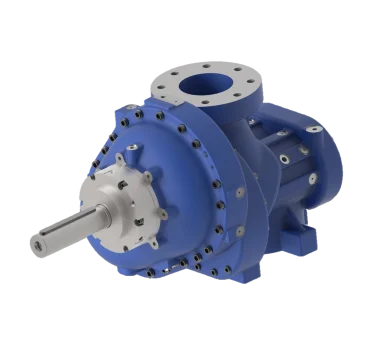

ITA-HP 13

Power range up to 110 kW (150 hp)

Flow range up to 8.8 m3/min

Max pressure 25 barg (360 psig)

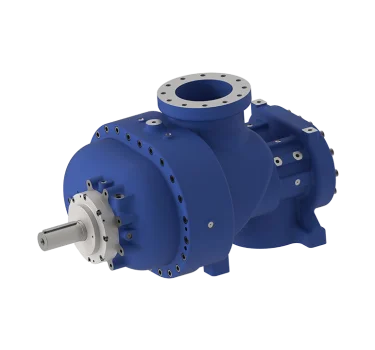

ITA-HP 26

Power range up to 350 kW (470 hp)

Flow range up to 36 m3/min

Max pressure 25 barg (360 psig)
