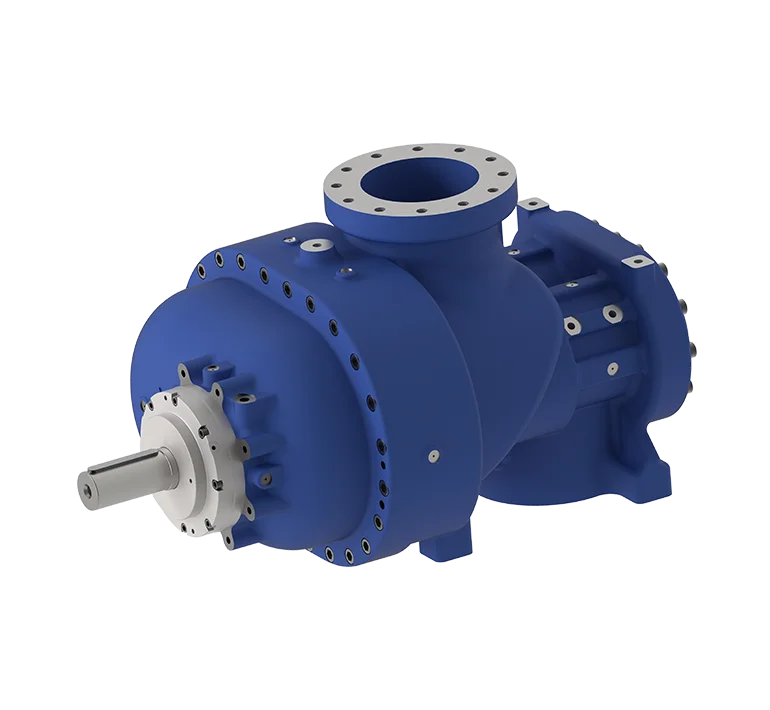

ITA-HP 26

Screw Gas-ends

The Booster Series, ITA-HP, has been designed to achieve a suction pressure of 8 barg (115 psig) and a discharge pressure of 25 barg (360 psig). These boosters ensure exceptional performance in applications where the suction pressure is up to 8 barg (115 psig).

The Booster Series, ITA-HP, has been designed to achieve a suction pressure of 8 barg (115 psig) and a discharge pressure of 25 barg (360 psig). These boosters ensure exceptional performance in applications where the suction pressure is up to 8 barg (115 psig). Utilizing a booster solution eliminates the need for decompression before the inlet, which typically results in efficiency loss.

The series, comprising two sizes (13 and 26), can cover a range from 37 to 350 kW (50 to 470 hp), reaching a maximum gas flow of 36 m³/min (1260 cfm).

Read more

Product
parameters


Measure
min
max
Power range
kW
90
350
Power range
HP
120
470
Flow range
m3/min
8
36
Flow range
cfm
282
1260
Max allowable working pressure
barg/psig
25/360
25/360

* referred to 10 bar

Technical
features

  • Oil Injected Screw Compressors;
  • Bare shaft;
  • Single Stage;
  • Integrated gear-box;
  • Mechanical Seal;
  • Balance piston
