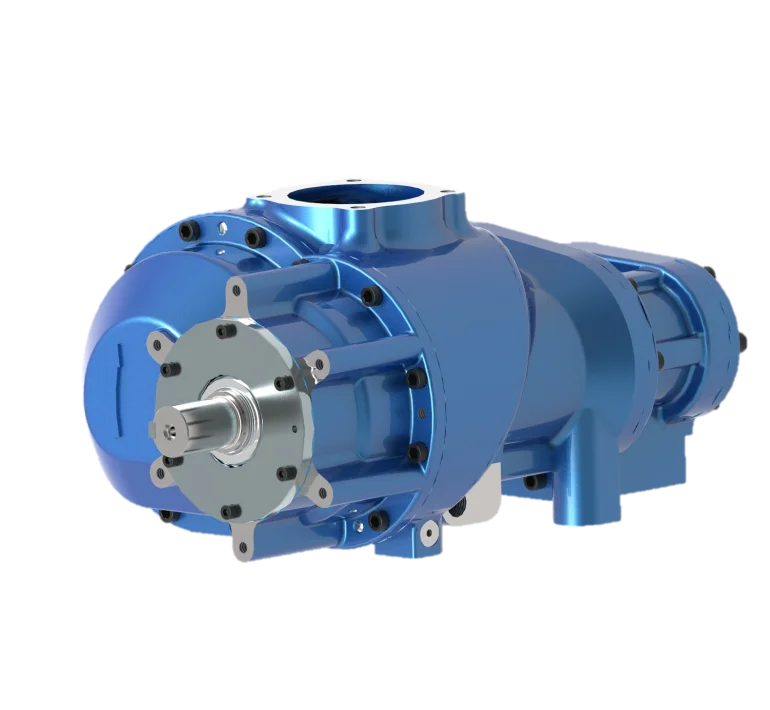

ITA 18

Description Product parameters Technical features
Description Product parameters Technical features
Order product

ITA 18

Screw Air-ends

The ITA series, comprising the 2 sizes ITA18 and ITA23, is the oil-injected bare-shaft air-end series that completes the TM.I.C. product offering.

The ITA series, comprising the 2 sizes ITA18 and ITA23, is the oil-injected bare-shaft air-end series that completes the TM.I.C. product offering. The ITA series is distinguished by its exceptional efficiency, low noise, and reliability, attributes made possible by the innovative TM.I.C. rotor profile developed using the latest design tools.

Read more

Product
parameters


Measure
min
max
Power range
kW
45
110
Power range
HP
60
147
Flow range
m3/min
7
15
Flow range
cfm
247
530
Max allowable working pressure
barg/psig
15/220
15/220

* referred to 10 barg

Technical
features

  • Oil Injected Screw Compressors;
  • Single Stage;
  • Bare-shaft;
  • 2 Sizes;
  • Integrated Gear-box available;
  • Rotor profile entirely designed by TM.I.C.;
  • High efficiency;
  • Optimized compact design;
  • Low Noise;
  • Low Nominal Speed;
  • ITA Discharge Pressure Range from 3 to 15 barg
    (43.5 to 220 psig)
