Screw
Air-ends

Industrial & Portable applications
TM.I.C. is specialized in manufacturing standard & high-pressure Oil-Injected Screw Air Ends equipped with Integrated Gear - Box. Our single stage Air Ends are able to reach discharge pressure up to 20 barg (290 psig).
Read more
Power range (kW)
Power range (HP)
Flow range (m3/min)
Flow range (cfm)
Max allowable working pressure (bar)
Max allowable working pressure (psig)
* All the measurement are referred to 10 barg
ITA 18
min
max
Power range (kW)
45
110
Power range (HP)
60
147
Flow range (m3/min)
7
15
Flow range (cfm)
247
530
Max allowable working pressure (bar)
15
15
Max allowable working pressure (psig)
220
220
Show
ITA 23
min
max
Power range (kW)
90
220
Power range (HP)
120
295
Flow range (m3/min)
13
32
Flow range (cfm)
460
1130
Max allowable working pressure (bar)
15
15
Max allowable working pressure (psig)
220
220
Show

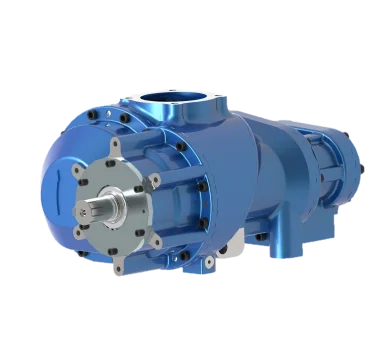

ITA 18

Power range up to 110 kW (147 hp)

Flow range up to 15 m3/min

Max pressure 15 barg (220 psig)

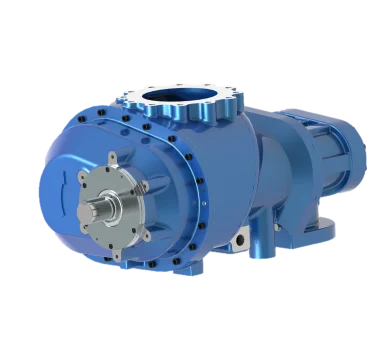

ITA 23

Power range up to 220 kW (295 hp)

Flow range up to 32 m3/min

Max pressure 15 barg (220 psig)
