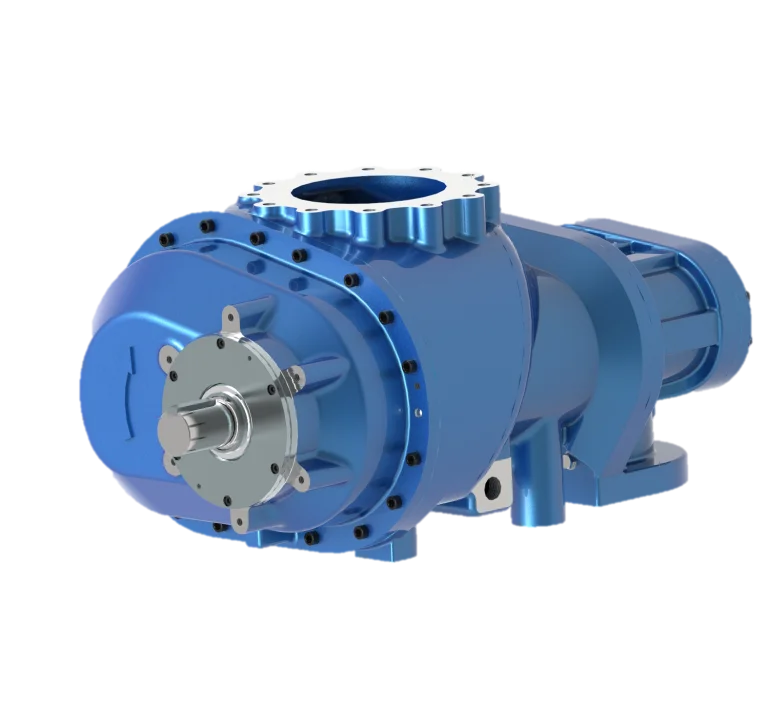

ITA 23

Screw Air-ends

The ITA series, comprising the 2 sizes ITA18 and ITA23, is the oil-injected bare-shaft air-end series that completes the TM.I.C. product offering.

The ITA series, comprising the 2 sizes ITA18 and ITA23, is the oil-injected bare-shaft air-end series that completes the TM.I.C. product offering. The ITA series is distinguished by its exceptional efficiency, low noise, and reliability, attributes made possible by the innovative TM.I.C. rotor profile developed using the latest design tools.

Read more

Product
parameters


Measure
min
max
Power range
kW
90
220
Power range
HP
120
295
Flow range
m3/min
13
32
Flow range
cfm
460
1130
Max allowable working pressure
barg/psig
15/220
15/220

* referred to 10 barg

Technical
features

  • Oil Injected Screw Compressors;
  • Single Stage;
  • Bare-shaft;
  • 2 Sizes;
  • Integrated Gear-box available;
  • Rotor profile entirely designed by TM.I.C.;
  • High efficiency;
  • Optimized compact design;
  • Low Noise;
  • Low Nominal Speed;
  • ITA Discharge Pressure Range from 3 to 15 barg
    (43.5 to 220 psig)
